Dyson V10 Indicates Charging But Not Charge

The Dyson V10 is a powerful cordless vacuum cleaner that offers exceptional cleaning performance. However, like any electronic device, it can experience charging issues that prevent it from functioning properly. If your Dyson V10 isn’t charging as expected, you might notice flashing lights, reduced runtime, or complete failure to power on.

Affiliate disclosure:  As an Amazon associate, We'll earn a commission for every successful order through our affiliate links in the article. However, you won’t be charged anything for this.

These charging problems can be frustrating, especially when they occur shortly after purchase. The good news is that many Dyson V10 charging issues can be diagnosed and resolved without professional help. In this comprehensive guide, we’ll explore the common causes of charging problems with the Dyson V10 and provide step-by-step solutions to get your vacuum working again.

Common Dyson V10 Charging Problems

When your Dyson V10 experiences charging issues, it typically communicates the problem through specific light patterns. Users frequently report seeing one to three flashing lights when the vacuum is plugged in, suggesting it’s beginning to charge. However, after several hours, these lights may change to an alternating red and blue flashing pattern, indicating a charging failure.

Some users have encountered these problems after minimal use. For instance, one user reported charging issues after using their V10 Animal only three times. In this case, the vacuum displayed the charging indicator lights but failed to actually charge. Interestingly, replacing the battery didn’t solve the problem, but a new charger did.

Another common scenario involves pressing the trigger and seeing only a single flashing light, which suggests the battery isn’t properly charged or isn’t communicating correctly with the vacuum’s electronics.

Diagnosing Your Dyson V10 Charging Issue

Check the Battery Connection

The first step in troubleshooting is to ensure the battery is properly seated:

  1. Unplug the charger from your Dyson V10
  2. Press the trigger on the vacuum
  3. Observe the battery indicator lights
  4. If no red LED appears and only one blue light flashes, the battery may not be properly connected

To fix this:
1. Remove the battery by pressing the release button
2. Check for any debris or obstructions in the battery compartment
3. Reinsert the battery firmly until it clicks into place
4. Try charging again

Test the Charging Adapter

A faulty charger is one of the most common causes of Dyson V10 charging problems:

  1. Inspect the charging cable for any visible damage or fraying
  2. Check the wall outlet by plugging in another device to confirm it’s working
  3. Connect the charger to your Dyson V10 and observe the lights
  4. If you see alternating red and blue flashing lights, the charger might be defective

If the charging adapter is damaged or not functioning correctly, a replacement is needed to ensure proper charging.

Dyson V10 Charger

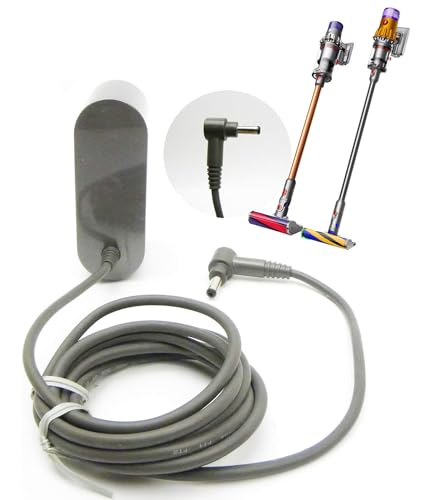

Dyson Genuine V10 Charger
Dyson Genuine V10 Charger
30.45V
1.8m Cable
Part #217160-02

Official replacement for Dyson V10 models.

30.45V ETL Certified Charger
30.45V ETL Certified Charger
30.45V
6ft Cable
Part #217160-02

ETL certified with 6ft cable for extended reach.

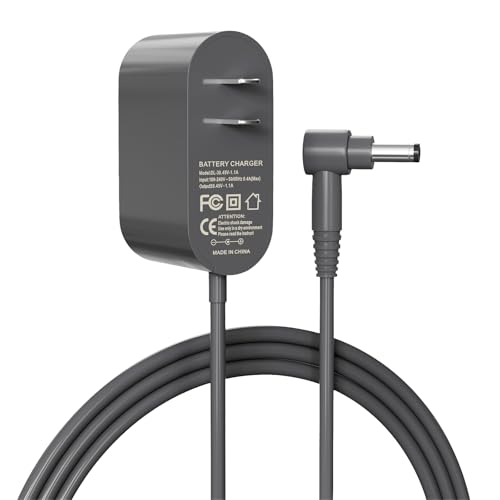

30.45V Budget Charger
30.45V Budget Charger
30.45V
5.6ft Cable
Part #217160-02

Affordable option with 1-year warranty.

30.45V 12-Month Warranty
30.45V 12-Month Warranty
30.45V
1.8m Cable
Part #217160-02

12-month warranty and 1.8m cable.

Many users have successfully resolved their charging issues by simply replacing the charger. If possible, try borrowing a compatible charger from a friend to test before purchasing a new one.

Examine the Charging Port

Dust and debris can accumulate in the charging port, preventing proper connection:

  1. Unplug the vacuum from the charger
  2. Use a flashlight to inspect the charging port
  3. If you see dust or debris, use compressed air or a soft brush to clean it
  4. Reconnect the charger and check if charging begins normally

Reset the Battery

Sometimes, the battery management system needs a reset:

  1. Remove the battery from the vacuum (if possible with your model)
  2. Press and hold the power button for 20 seconds to discharge any remaining power
  3. Leave the battery disconnected for about 30 minutes
  4. Reinstall the battery and connect the charger
  5. Allow the vacuum to charge for at least 3.5 hours

Troubleshooting Specific Dyson V10 Charging Problems

Red and Blue Flashing Lights

When your Dyson V10 displays alternating red and blue flashing lights, follow these steps:

  1. Disconnect the charger and wait for 10 minutes
  2. Reconnect the charger and observe if the normal charging lights appear
  3. If the problem persists, try charging in a different location with a temperature between 50°F (10°C) and 86°F (30°C)
  4. If the lights continue to flash, the issue likely involves either the charger or the battery

Solution:

  1. Try a different Dyson charger if available
  2. If a new charger doesn’t help, the battery may need replacement
  3. In some cases, users have needed to replace both the battery and the charger

Single Flashing Blue Light

A single flashing blue light often indicates a potential battery failure:

  1. Disconnect the charger and press the trigger
  2. If the vacuum doesn’t turn on or runs for only a few seconds, the battery may be severely depleted or damaged
  3. Connect the charger and leave it for at least 3.5 hours
  4. If the single blue light continues to flash after a full charging cycle, the battery likely needs replacement

If the single blue light persists after attempting to charge, it indicates the battery is failing and needs replacing.

Dyson V10 Battery Replacement

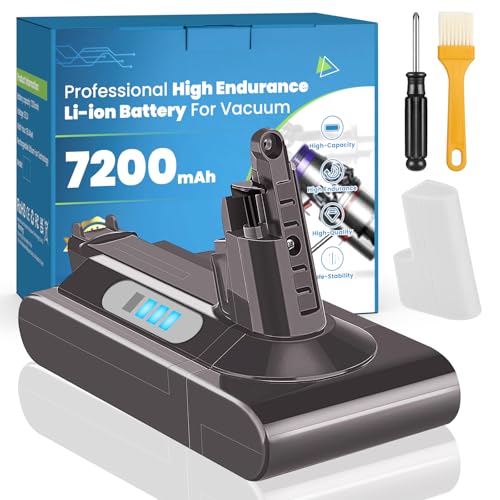

Designed Replacement 7200mAh V10 Battery
Designed Replacement 7200mAh V10 Battery
7200mAh Capacity
25.2V Li-ion
30-Day Refund

Highest capacity with RoHS & CE certified safety

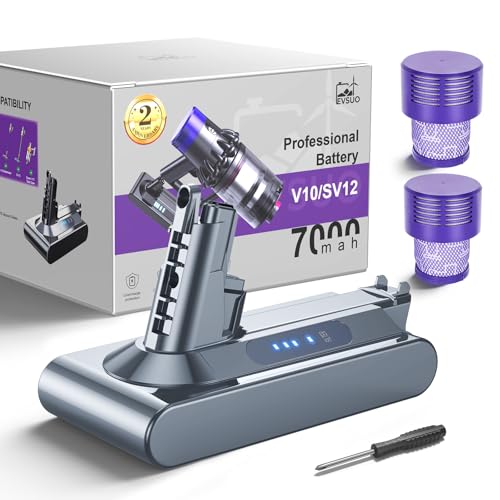

EVSUO 7000mAh V10 Replacement Battery
EVSUO 7000mAh V10 Replacement Battery
7000mAh Boost
10-Layer Safety
2-Year Warranty

20% higher capacity with dual LED indicators

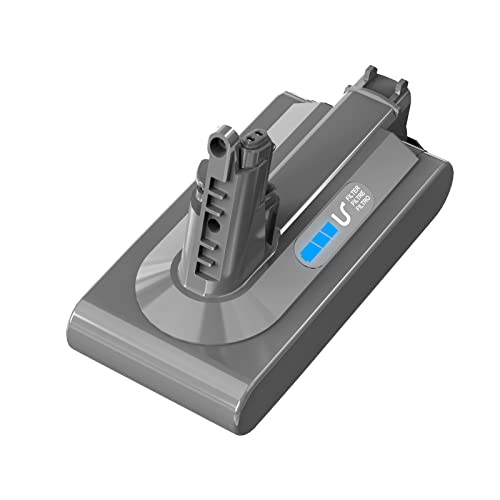

FirstPower 6000mAh V10 Battery
FirstPower 6000mAh V10 Battery
6000mAh Capacity
3-Year Warranty
3 LED Indicators

Balanced performance with extended warranty

Wryfzxd 5000mAh V10 Battery
Wryfzxd 5000mAh V10 Battery
5000mAh Capacity
A+ Grade Cells
Budget-Friendly

Affordable entry-level replacement with safety features

Red Light Flashing More Than 12 Times

This specific pattern indicates a faulty battery that needs replacement:

  1. Count the number of red flashes
  2. If it flashes more than 12 times, this is a definitive battery fault indicator
  3. Contact Dyson support or purchase a replacement battery
  4. Replace the battery following the manufacturer’s instructions

No Lights When Plugged In

If your Dyson V10 shows no lights at all when plugged in:

  1. Ensure the outlet is working by testing with another device
  2. Check that both ends of the charging cable are securely connected
  3. If the battery is completely depleted, leave it charging for at least 30 minutes before expecting any lights
  4. If still no response, try a different charger or outlet
  5. If these steps fail, the battery may be completely dead and require replacement

If there are no lights at all, it could mean the battery is completely dead and needs to be replaced.

Advanced Troubleshooting for Persistent Issues

Battery Replacement Procedure

If you’ve determined that your battery needs replacement:

  1. Purchase a genuine Dyson battery or a high-quality compatible replacement
  2. Locate the small Phillips screw on the handle of your Dyson V10
  3. Remove the screw carefully and set it aside
  4. Slide out the battery tray
  5. Remove the old battery and insert the new one
  6. Reattach the battery tray and secure it with the screw
  7. Charge the new battery fully before first use (approximately 3.5 hours)

Checking for Battery Cell Imbalance

A technical cause of Dyson V10 battery failures is cell imbalance:

  1. If your vacuum works briefly after charging but quickly shuts down
  2. Or if it runs on normal mode but cuts out after 5-6 seconds on max power
  3. The battery management system is likely detecting uneven cell drainage

This issue cannot be fixed through troubleshooting and requires battery replacement.

Multiple Component Failures

In some rare cases, users have experienced persistent issues even after replacing components:

  1. One user reported continued problems after replacing both the battery and the main body
  2. The solution ultimately came from replacing the charger as well
  3. If you’ve replaced the battery without success, consider that multiple components might be affected

Maximizing Your Dyson V10 Battery Life

Optimal Charging Practices

To extend the life of your Dyson V10 battery:

  1. Allow the battery to run completely empty at least once a month
  2. Charge the vacuum in environments between 50°F (10°C) and 86°F (30°C)
  3. Store your Dyson in temperatures between 64°F (18°C) and 82°F (28°C)
  4. Use the standard power mode for routine cleaning tasks
  5. Reserve the “Boost” or “Max” power mode for tough cleaning jobs that truly require it

Proper Usage Habits

How you use your Dyson can impact battery longevity:

  1. For extensive cleaning, break tasks into smaller sessions to prevent overheating
  2. Allow the vacuum to cool down between uses if it becomes warm
  3. Clean filters regularly according to the manufacturer’s instructions
  4. Empty the dust bin after each use to maintain optimal airflow and reduce strain on the motor

Frequently Asked Questions (FAQ)

Why does my Dyson V10 flash red and blue lights when charging?

Red and blue flashing lights typically indicate a charging failure. This could be caused by a faulty charger, a damaged battery, or improper connection between the charger and the vacuum. Try using a different charger first, as this has resolved the issue for many users. If the problem persists, the battery may need replacement.

How long should a Dyson V10 battery last before needing replacement?

A Dyson V10 battery typically lasts 2-4 years with regular use before noticeable degradation occurs. If your vacuum is within the two-year warranty period and experiencing battery issues, contact Dyson support as you may qualify for a free replacement. For older vacuums, reduced runtime is normal and eventually will require battery replacement.

Can I use third-party batteries in my Dyson V10?

While third-party batteries are available and often less expensive, they may not perform as well as genuine Dyson batteries. Using non-Dyson batteries can also void your warranty if the vacuum is still covered. If you choose a third-party option, select one from a reputable manufacturer with positive reviews and avoid the cheapest options, which often fail prematurely.

How can I tell if my Dyson V10 battery needs replacement?

Signs that your battery needs replacement include: significantly reduced runtime compared to when new, the vacuum shutting off after a few seconds on max power, inability to hold a charge, or specific error light patterns (particularly red light flashing more than 12 times). If your vacuum only runs for a few minutes after a full charge, the battery has likely reached the end of its useful life.

Conclusion

Dyson V10 charging issues can be frustrating but are often solvable with the right approach. By following the troubleshooting steps outlined in this guide, you can diagnose and potentially fix the problem yourself. In many cases, the solution is as simple as replacing the charger or ensuring the battery is properly seated.

For persistent issues, don’t hesitate to contact Dyson customer support, especially if your vacuum is still under warranty. They can provide model-specific guidance and may offer replacement parts or repair services. With proper care and maintenance, your Dyson V10 can provide years of reliable cleaning performance, even after resolving initial charging problems.
