Fixing Dyson DC25 Not Picking Up

The Dyson DC25 is a powerful vacuum cleaner known for its effective suction capabilities. However, like any machine, it can experience issues over time. If your Dyson DC25 has stopped picking up dirt effectively, don’t worry – this problem is often fixable without professional help.

In this comprehensive guide, we’ll walk through the most common reasons why your Dyson DC25 might not be picking up debris and provide detailed solutions to restore its performance. From clogged filters to brush bar issues, we’ll cover all the potential culprits and give you step-by-step instructions to diagnose and fix each problem. By following these troubleshooting steps, you can save money on repairs and extend the life of your vacuum.

Common Causes of Suction Loss in Dyson DC25

When your Dyson DC25 stops picking up dirt effectively, several components might be responsible. The most frequent culprits include:

1. Clogged filters – Both the pre-motor and HEPA filters can become clogged with dust and debris
2. Blockages in the hose system – Obstructions in the main hose, wand, or connecting tubes
3. Brush bar problems – Tangled hair or debris preventing proper rotation
4. Changeover valve issues – The valve that directs suction may be stuck or blocked
5. Damaged small suction hose – Cracks or disconnections in the hose connecting the cleaner head

Each of these problems manifests with similar symptoms: reduced pickup performance, louder operation, and potentially quicker overheating of the motor. Let’s explore how to address each issue systematically.

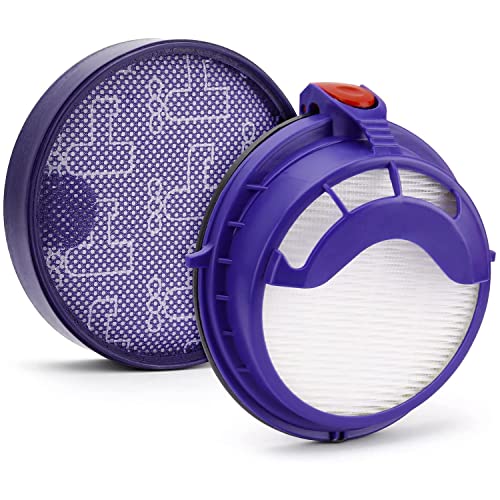

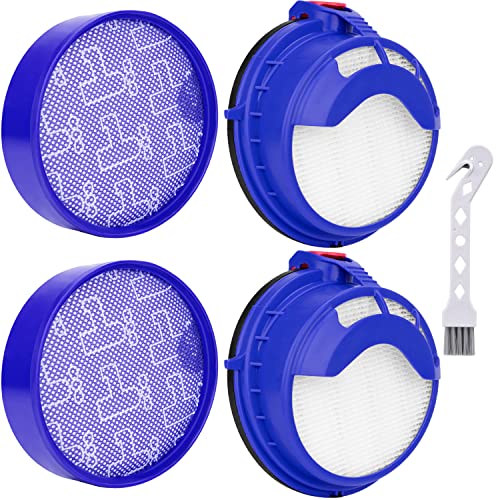

Proper Filter Maintenance and Cleaning

The DC25 uses a dual filtration system that requires regular maintenance. Neglected filters are one of the most common reasons for suction loss.

Cleaning the Pre-Motor Filter

This filter should be cleaned every 2-3 weeks with regular use:

1. Turn off and unplug your vacuum for safety
2. Locate the pre-motor filter near the top of the vacuum
3. Open the filter housing by pressing the release button
4. Remove the pre-motor filter carefully
5. Tap the filter against a hard surface to remove loose dust
6. Rinse thoroughly under cold running water
7. Gently rub away stubborn dirt with your fingers
8. Squeeze out excess water
9. Allow the filter to dry completely for at least 24 hours
10. Reinsert the dry filter into the housing

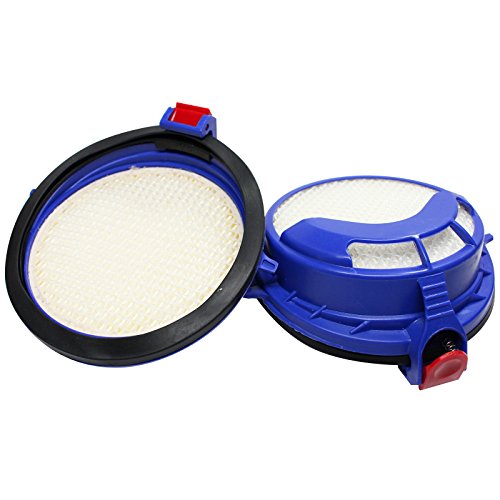

Cleaning the Post-Motor HEPA Filter

This filter requires cleaning every 3-4 months:

1. Locate the post-motor filter cover near the base of the vacuum
2. Press the release button to open the cover
3. Carefully remove the post-motor filter
4. Tap to remove loose dust
5. If washable (check your user manual), rinse with cold water
6. Use a soft brush for stubborn dirt
7. Allow to dry completely for at least 24 hours
8. Reinstall when fully dry

A damaged or excessively dirty HEPA filter can restrict airflow and diminish suction. Replacing it ensures proper filtration and optimal vacuum performance.

Important safety note: Never reinsert wet filters as this can cause electrical hazards and promote mold growth.

Unclogging the Hose System

If your filters are clean but suction problems persist, blockages in the hose system are likely culprits.

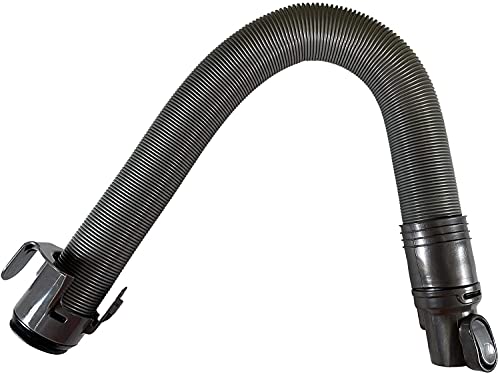

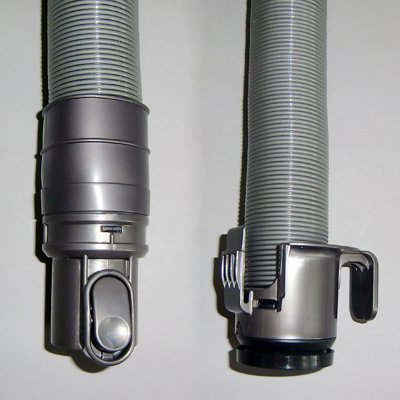

Main Hose Inspection and Cleaning

1. Disconnect the hose from both ends of the vacuum
2. Hold it up to a light source to check for visible blockages
3. Use a long, thin object like a straightened coat hanger to gently push out any blockages
4. Run water through the hose to flush out stubborn debris
5. Allow the hose to dry completely before reattaching

If the main hose is cracked, split, or irreparably blocked, replacing it is necessary to restore proper suction.

Wand and Extension Tube Clearing

1. Detach the wand from the vacuum
2. Look through it to check for obstructions
3. Use a broom handle or similar long object to push out blockages
4. Pay special attention to the bends in the tube where debris often collects

Checking Connection Points

1. Examine all connection points between hoses and the main unit
2. Clear any visible debris from these areas
3. Ensure all connections are secure when reassembling

Brush Bar Troubleshooting and Maintenance

A malfunctioning brush bar can significantly reduce pickup performance, especially on carpets.

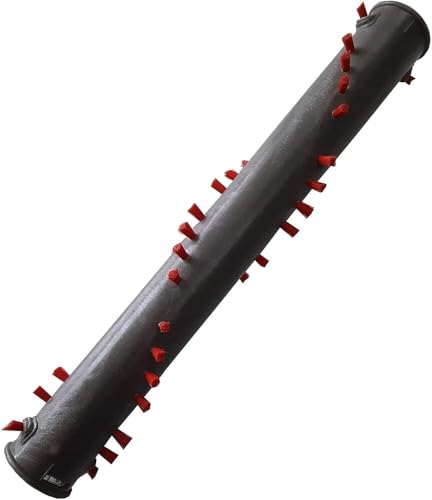

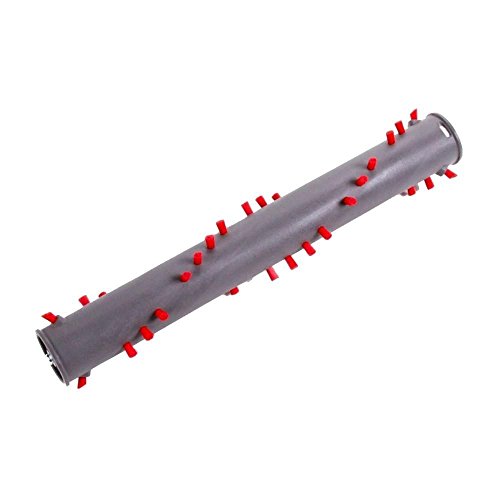

Cleaning the Brush Bar

1. Turn off and unplug the vacuum
2. Flip the vacuum over to access the brush bar
3. Locate the brush bar release mechanism (usually a lever or button)
4. Remove the brush bar carefully
5. Cut away any tangled hair or fibers using scissors
6. Remove any debris wrapped around the ends of the brush
7. Check the brush bristles for wear and damage
8. Reinstall the brush bar securely

If the brush bar bristles are worn down or the brush bar itself is damaged, replacing it will improve the vacuum’s ability to agitate and lift dirt from carpets.

Checking the Brush Bar Mechanism

The brush bar assembly contains several components that could cause issues:

1. Inspect the gear shaft for damage
2. Check the tension bar for proper alignment
3. Examine the plastic retainer tab on the end cap for breakage
4. Ensure the motorized rotating brush bar moves freely
5. Verify that the end cap is secure to prevent wobbling

If the motor that drives the brush bar has failed, the brush won’t spin, significantly reducing cleaning effectiveness. Replacing the motor will restore the brush bar’s functionality.

If any components are damaged, they may need replacement to restore proper functionality.

Advanced Troubleshooting: The Changeover Valve

If you’ve cleaned filters, cleared blockages, and checked the brush bar but still have suction issues, the changeover valve might be the problem.

Accessing and Inspecting the Changeover Valve

1. Remove the ball cover and filter to access the valve
2. Using needle-nose pliers, carefully expose the changeover valve (resembles a large plastic golf tee)
3. Check for debris or foreign objects lodged in the valve
4. Inspect for proper movement – the valve should flip freely
5. Clear any obstructions that might be preventing proper operation

Testing After Valve Maintenance

1. Reassemble the vacuum
2. Test suction directly from the base by removing the cleaner head
3. Place the vacuum in the reclined position
4. If suction is strong at the base but weak through the head, inspect the cleaner head for hidden blockages

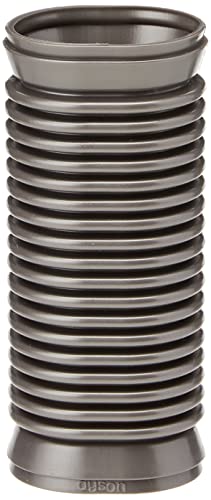

Small Suction Hose Inspection

The small suction hose connecting the cleaner head to the main vacuum body is often overlooked but can cause significant suction loss.

Checking for Damage and Proper Connection

1. Examine the entire length of the small hose for cracks or damage
2. Verify that the hose is securely connected at both ends
3. Look for pinched areas that might restrict airflow
4. Replace the hose if cracks or damage are found

Frequently Asked Questions (FAQ)

Why does my Dyson DC25 have good suction at the hose but not at the head?

This typically indicates a blockage between the cleaner head and the main vacuum body. The most common culprits are a clogged small suction hose or a malfunctioning changeover valve. Remove the cleaner head and inspect both components. Also check that the brush bar is rotating properly, as a stationary brush bar won’t effectively agitate carpet fibers for pickup.

How often should I clean the filters on my Dyson DC25?

The pre-motor filter should be cleaned every 2-3 weeks with regular use, while the post-motor HEPA filter requires cleaning every 3-4 months. If you have pets or use the vacuum daily, you may need to clean them more frequently. Always allow filters to dry completely (at least 24 hours) before reinstalling them.

My Dyson DC25 suddenly lost suction during use. What should I check first?

Sudden suction loss during operation typically indicates an immediate blockage. First, empty the dirt container if it’s full. Then check for blockages in the most common areas: the hose entrance, the connection between the hose and wand, and the entrance to the cleaner head. Also inspect the brush bar for tangled hair or string that might have suddenly wrapped around it during operation.

Can I wash all parts of my Dyson DC25 with water?

No. While the filters and some hoses can be rinsed with cold water, electronic components should never be exposed to water. The cyclone assembly can be wiped clean with a damp cloth but shouldn’t be submerged. Always refer to your user manual for specific cleaning instructions for each component, and ensure any washed parts are completely dry before reassembly.

Why is my Dyson DC25 making unusual noises when I use it?

Unusual noises often indicate physical obstructions. A high-pitched whine might mean the motor is straining due to a blockage. Rattling noises could indicate something caught in the brush bar or a loose component. Grinding noises might suggest debris in the brush bar bearings or motor. Always turn off the vacuum immediately if you hear unusual noises and inspect for blockages or damage.

Conclusion

The Dyson DC25 is a reliable vacuum cleaner that can provide years of service with proper maintenance. When suction problems occur, they can almost always be resolved through systematic troubleshooting and cleaning of key components. By regularly maintaining the filters, checking for blockages, and ensuring the brush bar functions properly, you can keep your DC25 operating at peak performance.

Remember that prevention is the best approach – empty the dirt container regularly, clean filters on schedule, and remove tangled hair from the brush bar before it becomes problematic. With these maintenance habits, your Dyson DC25 should continue to provide excellent cleaning power for years to come.

If you’ve tried all these troubleshooting steps and still experience suction problems, it might be time to consult Dyson customer support or a vacuum repair specialist. However, in most cases, the solutions outlined in this guide should restore your vacuum’s performance without the need for professional intervention.
